Features & specifications
Roller shutter compatible. Comes with all the bracketry and hardware to mount the tub rack onto our BA roller shutters. Our unique Australian designed bracket allows for the easiest bolt-on bolt-off solution to adding tub or baja racks to a roller shutter....
Read moreRead less

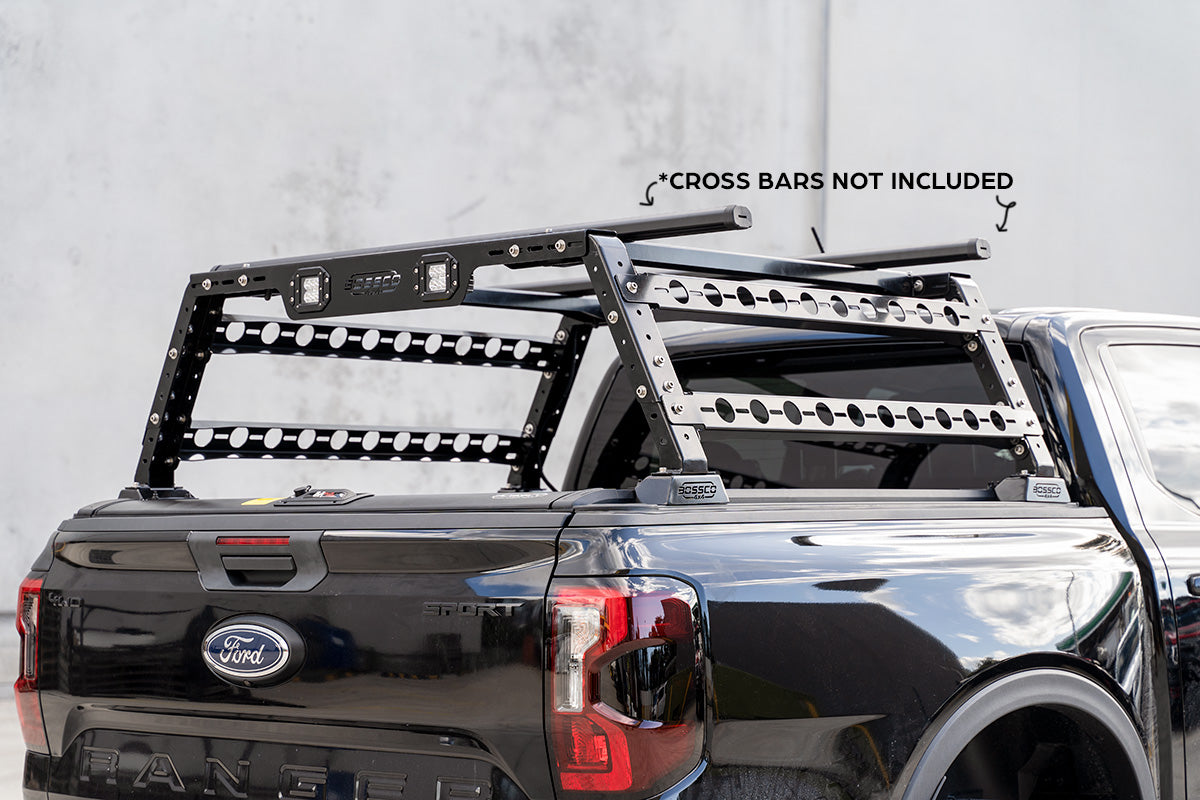

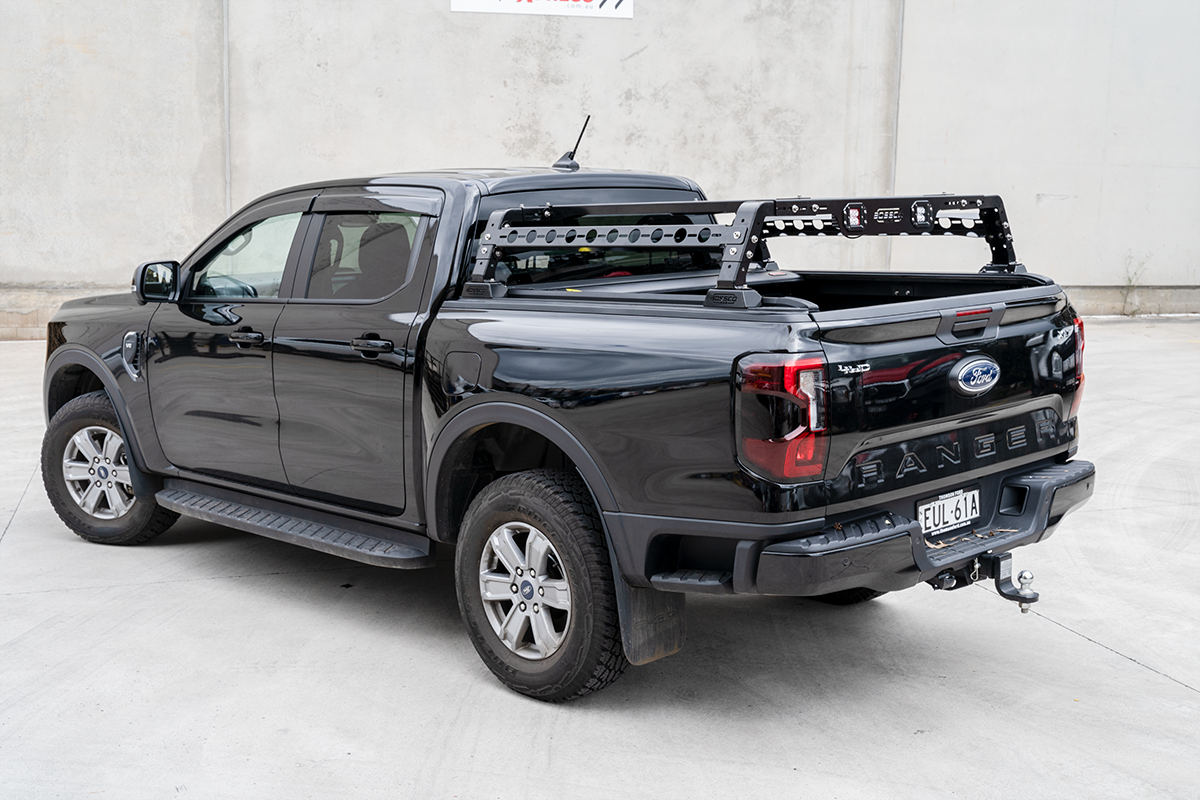

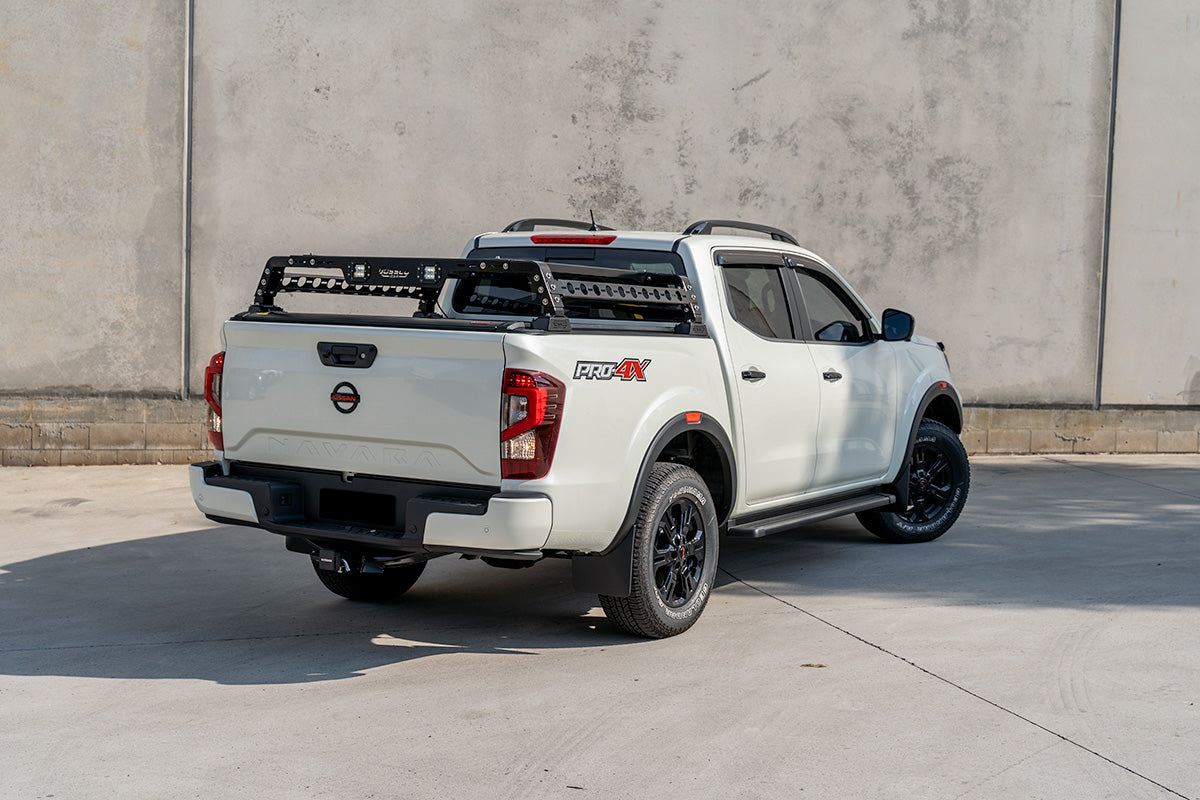

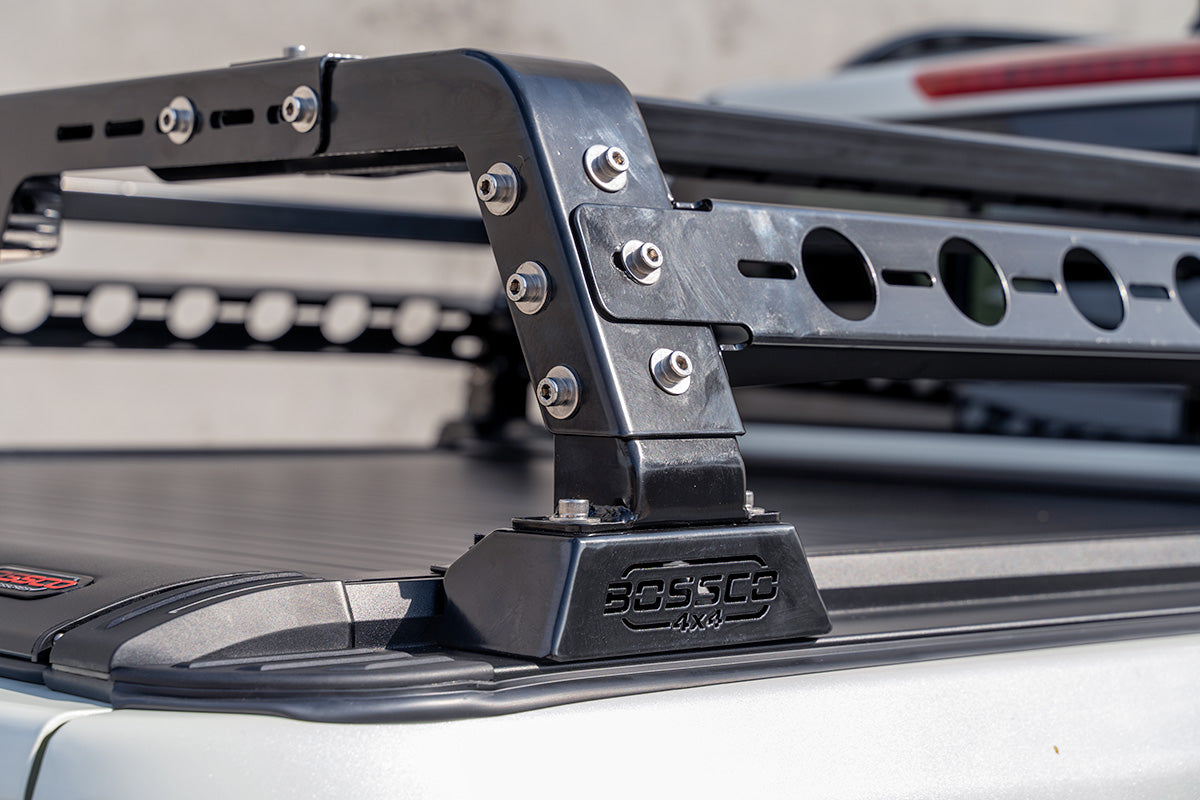

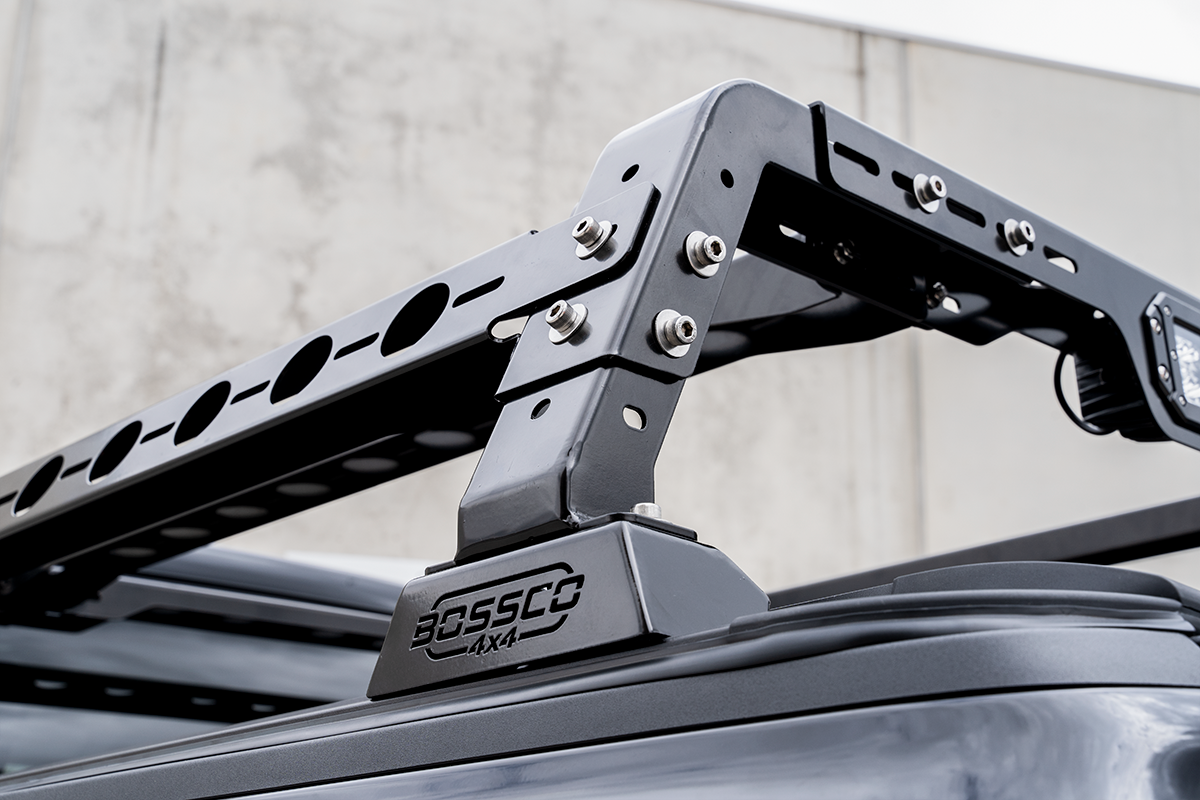

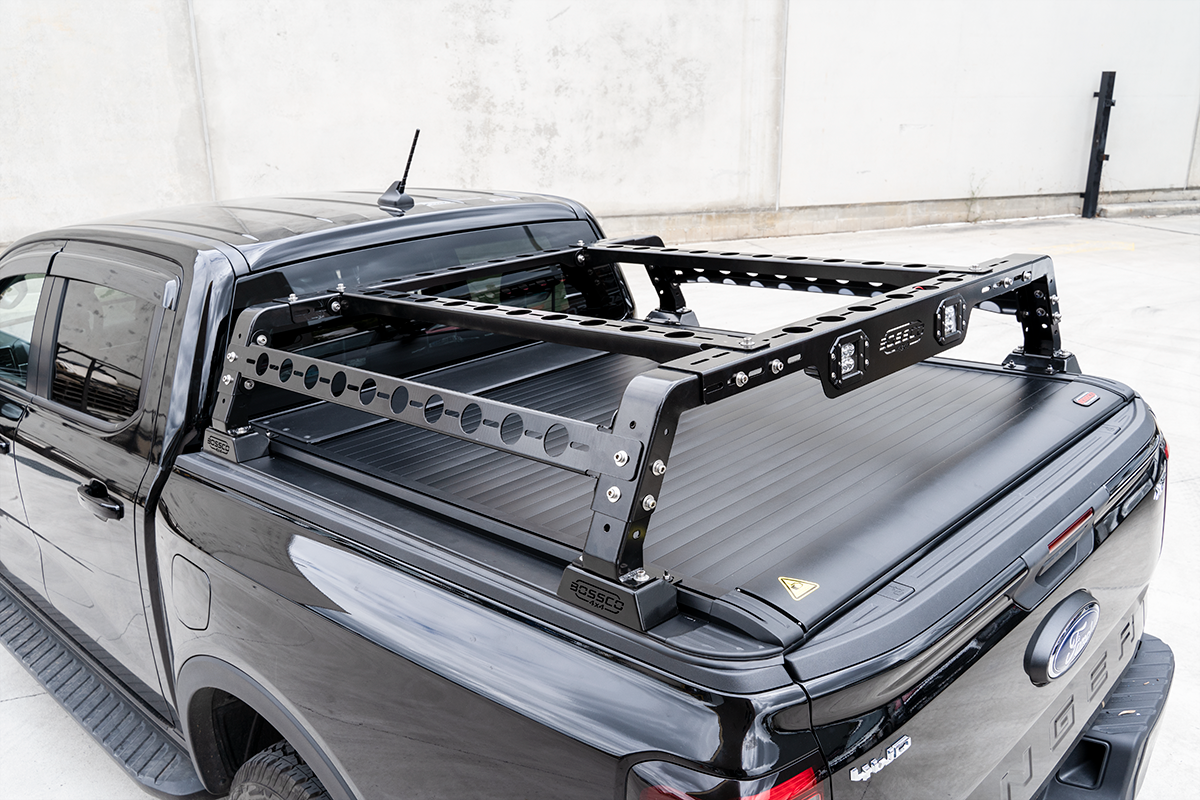

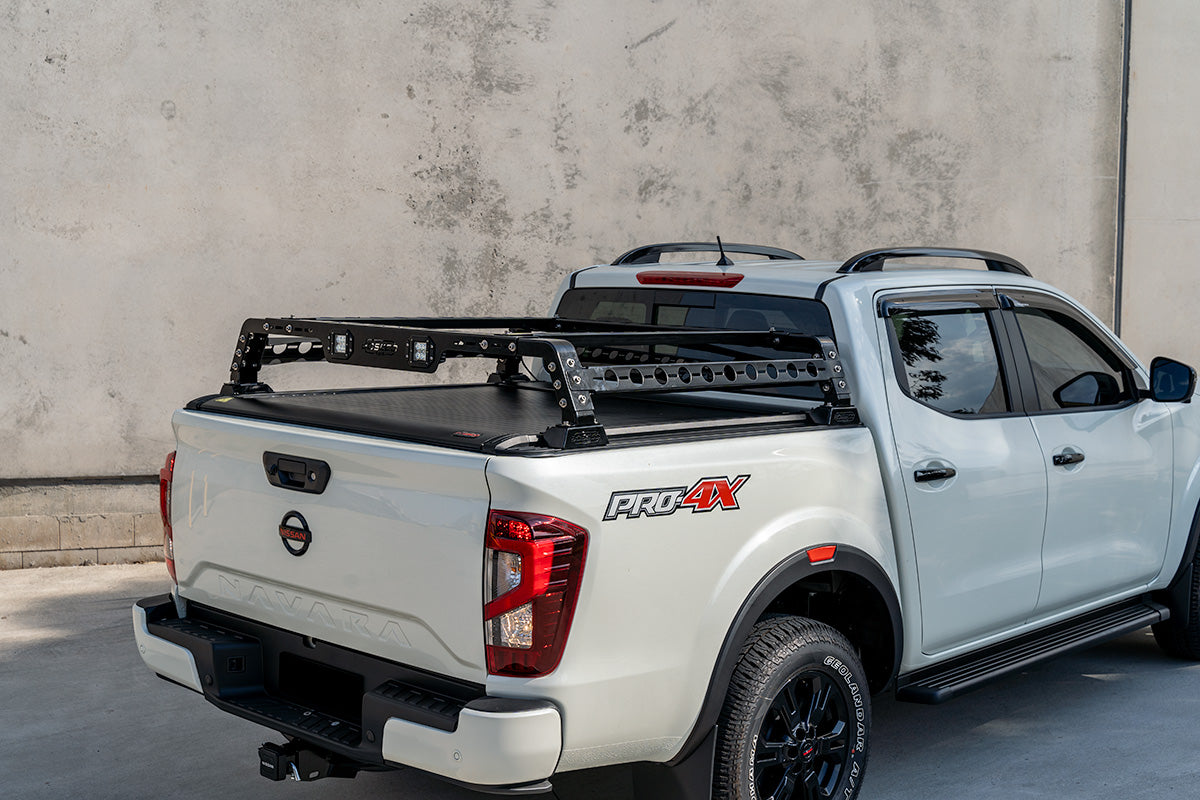

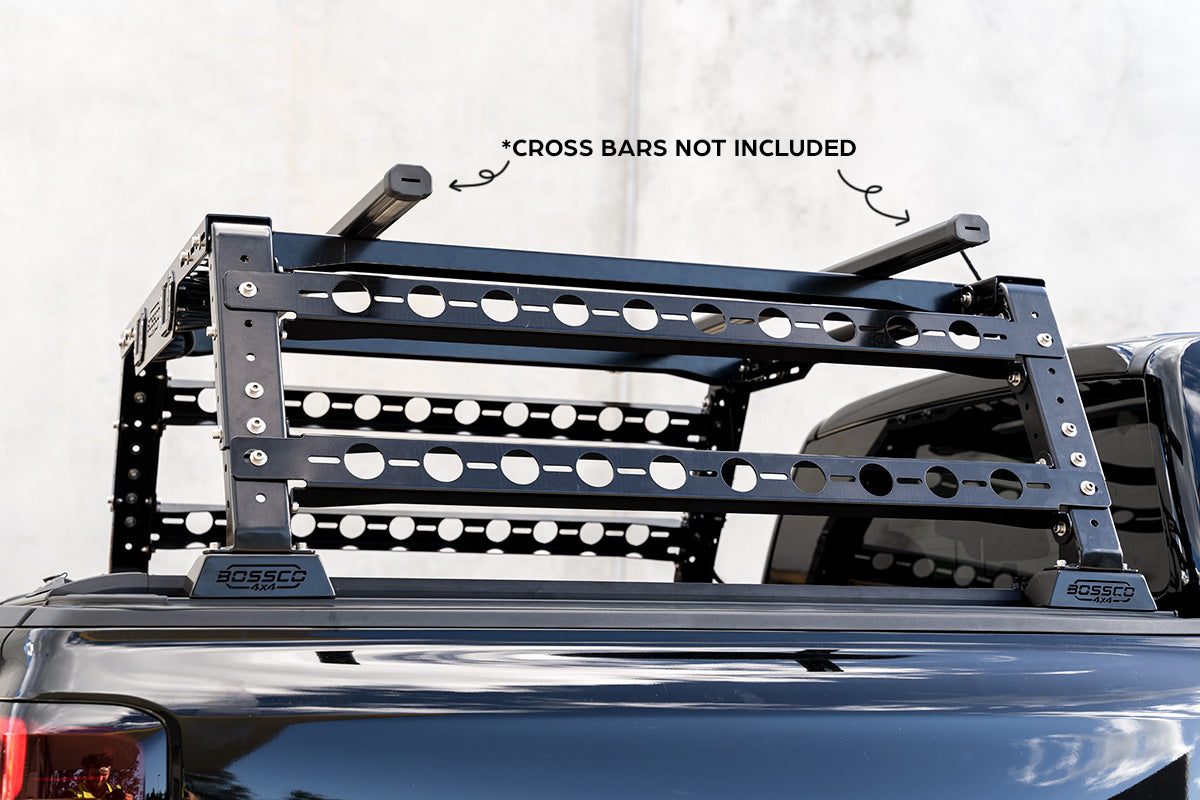

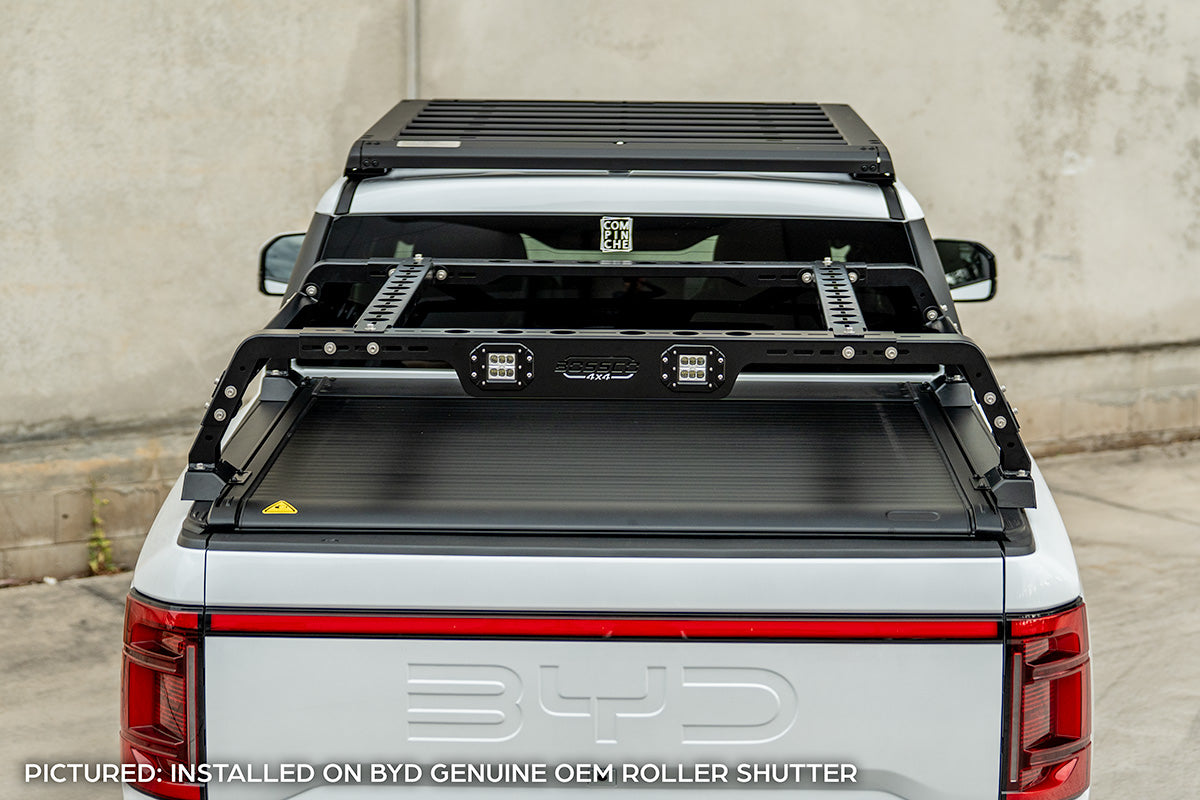

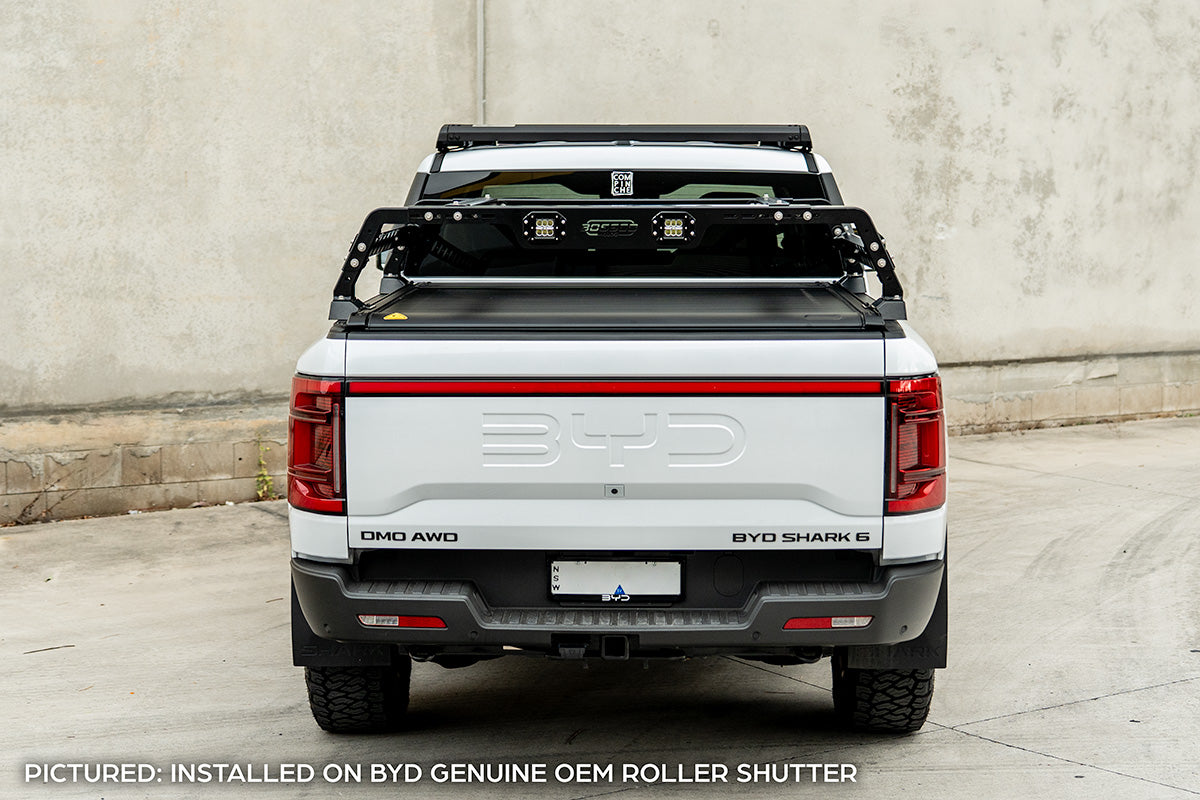

- Roller shutter compatible. Comes with all the bracketry and hardware to mount the tub rack onto our BA roller shutters. Our unique Australian designed bracket allows for the easiest bolt-on bolt-off solution to adding tub or baja racks to a roller shutter. Zero custom modification required - it doesn't even require new holes to be drilled or anything to be cut. This ensures the integrity of both tub rack and roller shutter. Super easy DIY and it doesn't leave you open to the chance of a leaky roller shutter.
- Completely modular. Adjustable height if you want to run it together with roof racks
-
Increases space & unlimited functionality. Provides additional mounting area for all your camping or construction equipment
- Ideal for most popular accessories, including awnings, hi-lift jacks, spare wheels, jerry cans and more.
- Camp ready. Perfect for rooftop tents and camping applications allowing you to free up the roof racks for more gear
- Designed to be used. Constructed from high tensile reinforced steel and finished in a multi-stage black powder coat to offer the best durability, functionality and flexibility in use.
- Static load rated to 400kg. Dynamic load rate of 100kg.
- Australia-centric design. Designed especially for Australian utes and our conditions. Extra reinforcement bars built in to achieve the extra ruggedness that our market demands

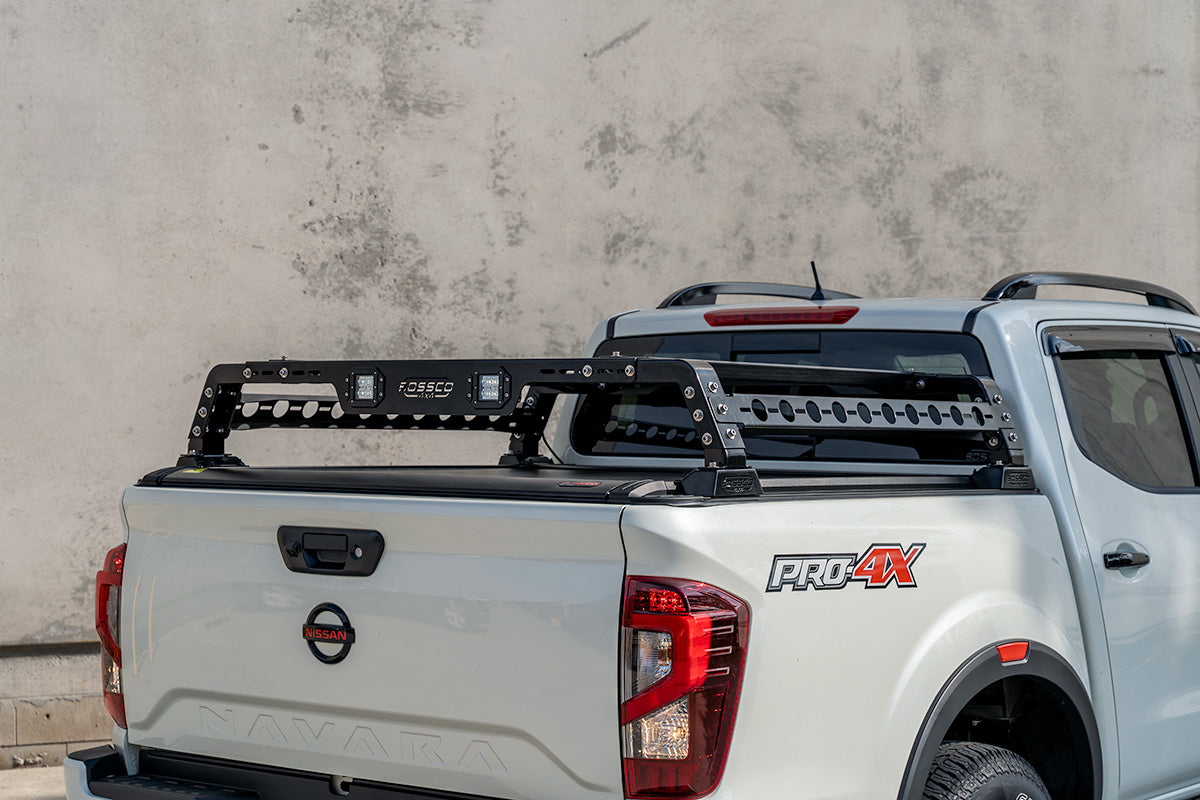

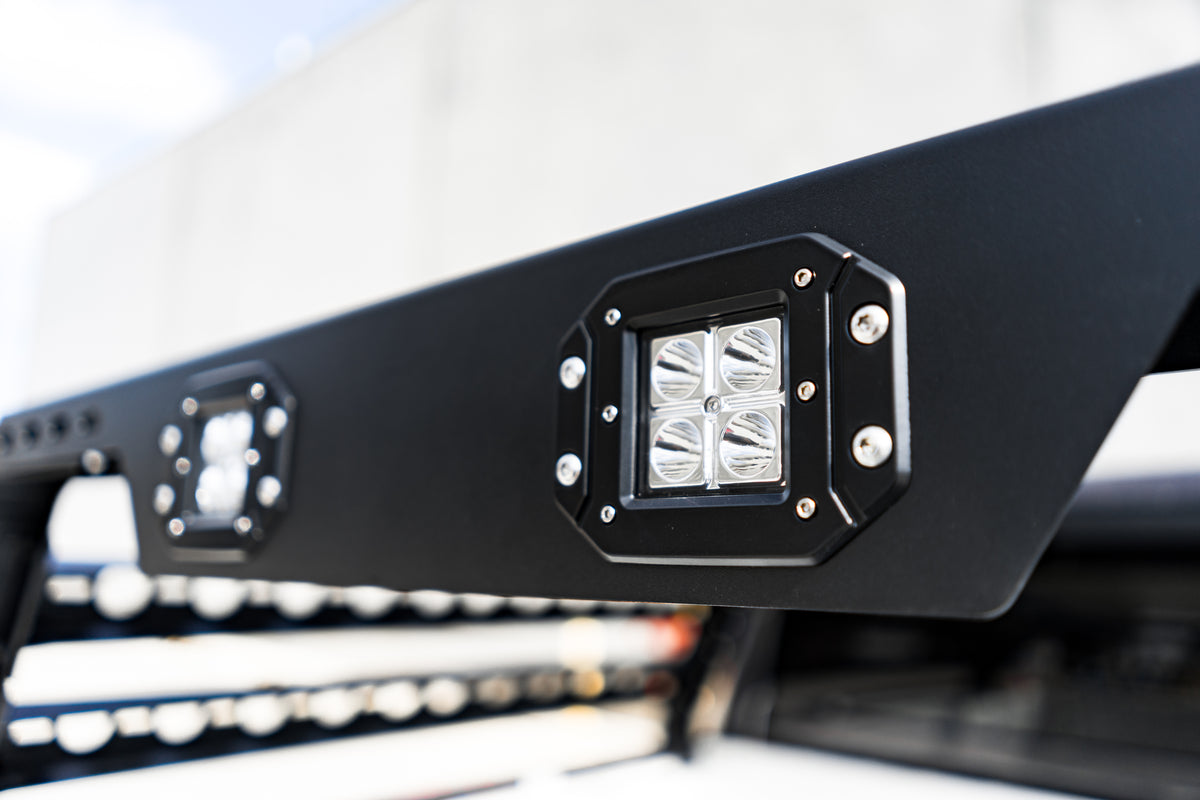

- Comes with 2 white square LED lights. Can be wired as extra reverse lights or camp lights. Harness not included
- Comes with all the hardware required to assembled and install onto your vehicle
- PLEASE NOTE: regardless of either installation method, it is important to ensure the roller shutter is securely attached to the vehicle by drilling the roller shutter's clamp-on brackets into the side rails of the tub.
Specifications
Full Height
- Height: 430-620mm from the sides of the tub (bracket height included) - for most, this will be above the roof line. Recommended for hard shell (longer) roof top tents.
- 50mm distance between adjustment holes.
- 6 holes of adjustment on the lower arm.
- 6 holes of adjustment on the upper arm.
- Length:1250mm (front of tub to rear of tub)
- Width: 1450-1700mm from base to base

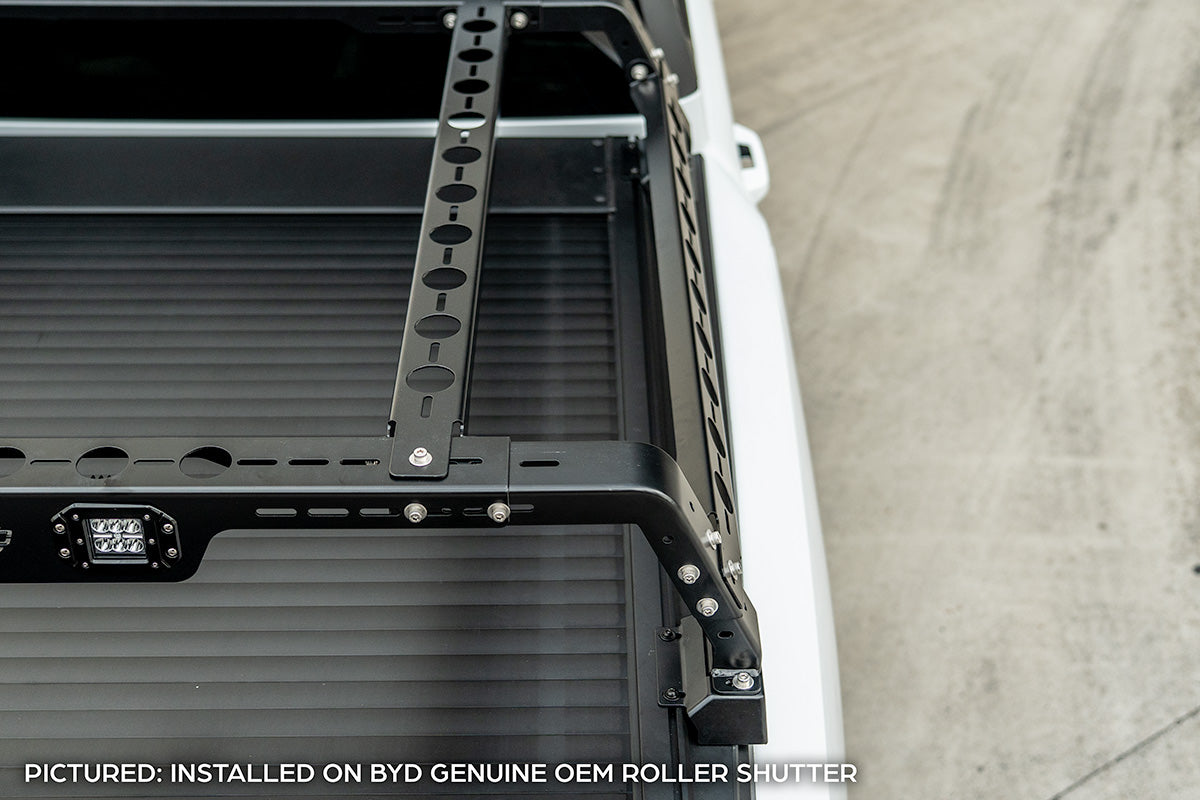

- Slotted holes used on crossbars for more minute increments and greater adjustability to suit different width tubs
- Includes 2 side bars on each side
Half Height
- Height: 250-330mm from the sides of the tub (bracket height included) - for most, this will be below the roof line. Recommended for soft (fold up) roof top tents that sit fully over the tub.
- 50mm distance between adjustment holes.
- 3 holes of adjustment on the lower arm.
- 3 holes of adjustment on the upper arm.
- Length:1250mm (front of tub to rear of tub)
- Width: 1450-1700mm from base to base
- Slotted holes used on crossbars for more minute increments and greater adjustability to suit different width tubs
- Includes 1 side bar on each side
