BCX-R Canopy Modular Storage Units

SKU: BCX-KIT1-PS
$899.00 AUD
Tax included. Shipping calculated at checkout.
Shipping Estimator

Loading ...

Description

Versatility in a multitude of situations is what we've focused on while designing our BCX Canopy storage boxes. You guys asked and we listened. And at the end of the day, the needs boiled down to:

  • Making use of valuable wasted airspace near the top of our canopies

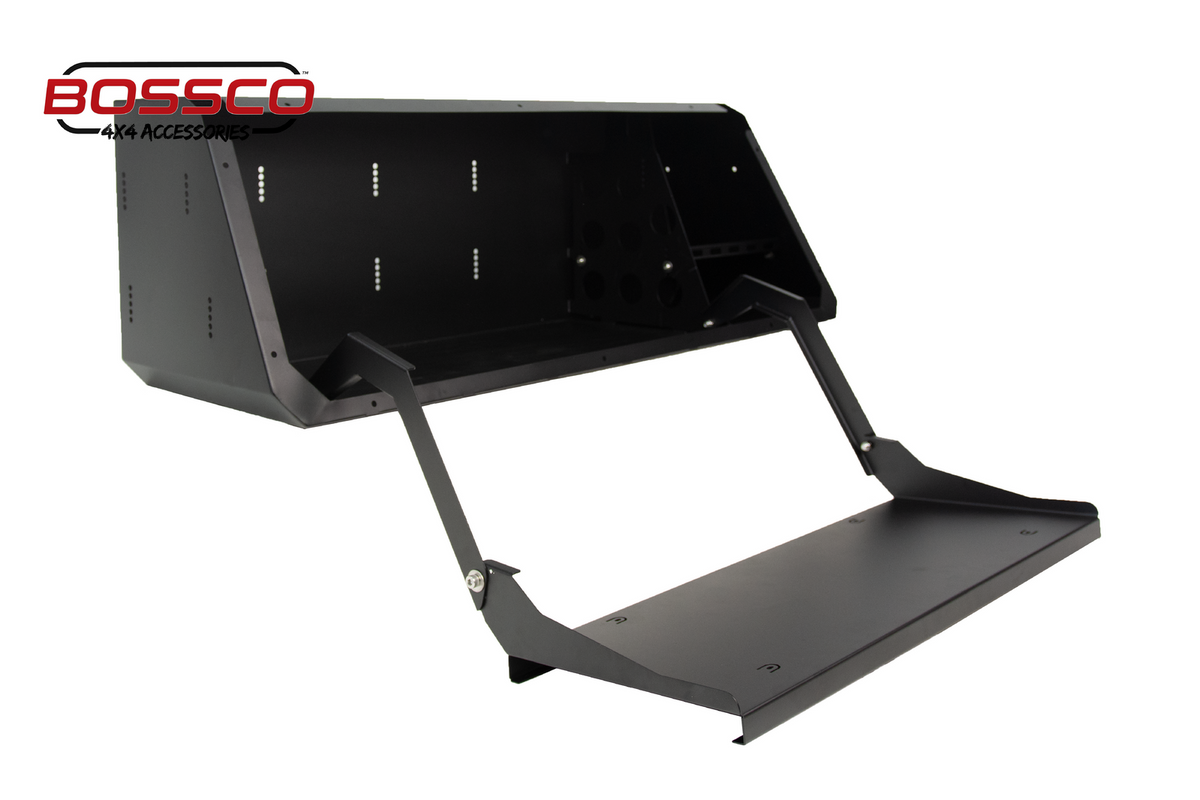

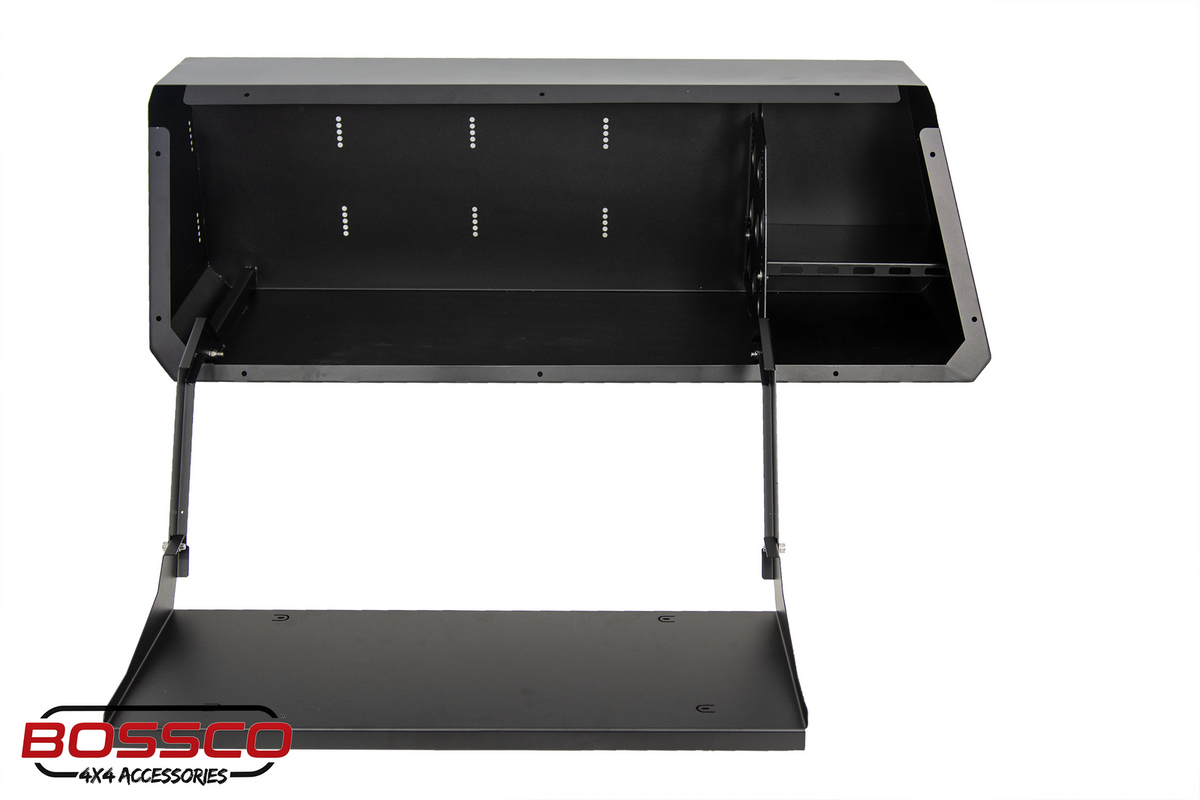

  • 750x275mm fold down table or bench. Because of the height of the vehicles we are often working with, the fold down table gives you a surface that is ergonomic and easy to use.
    • For campers: Stopping for a quick lunch or cup of coffee as we're touring through the 4WD tracks shouldn't be a hassle. It doesn't get easier than opening the side of your canopy and dropping down a lunch table to cook/eat on. The table even comes with 4 tabs and rivets so you can have a butane cooker permanently mounted to the table. For more complex meals that involve prep, pull out the double sided chopping board from underneath the table.
    • Alternatively, for campers: The entire canopy box can be converted to a home for all your 12V needs. Mounting all your 12V equipment against the front wall of the canopy can lead to loose items damaging expensive electrical components or turn on switches unknowingly. By keeping them inside the canopy box, they are easily accessible for servicing or fixing, they are hidden (but also easily shown off) and the centre support is built with circular cutouts for cable mangement. Even better, all your switches, cig sockets and other controls can be mounted directly onto the rear wall of the box so they're easily within reach from the back of the car.
    • For tradies: It's the office the comes with you. By leaving the design minimalistic, more storage space is left for commonly used tools, stationary, notepads, invoice books etc. Furthermore, the table is a great size for a laptop and the chopping board doubles as a mouse pad (foam mouse pad may be required depending on the mouse)

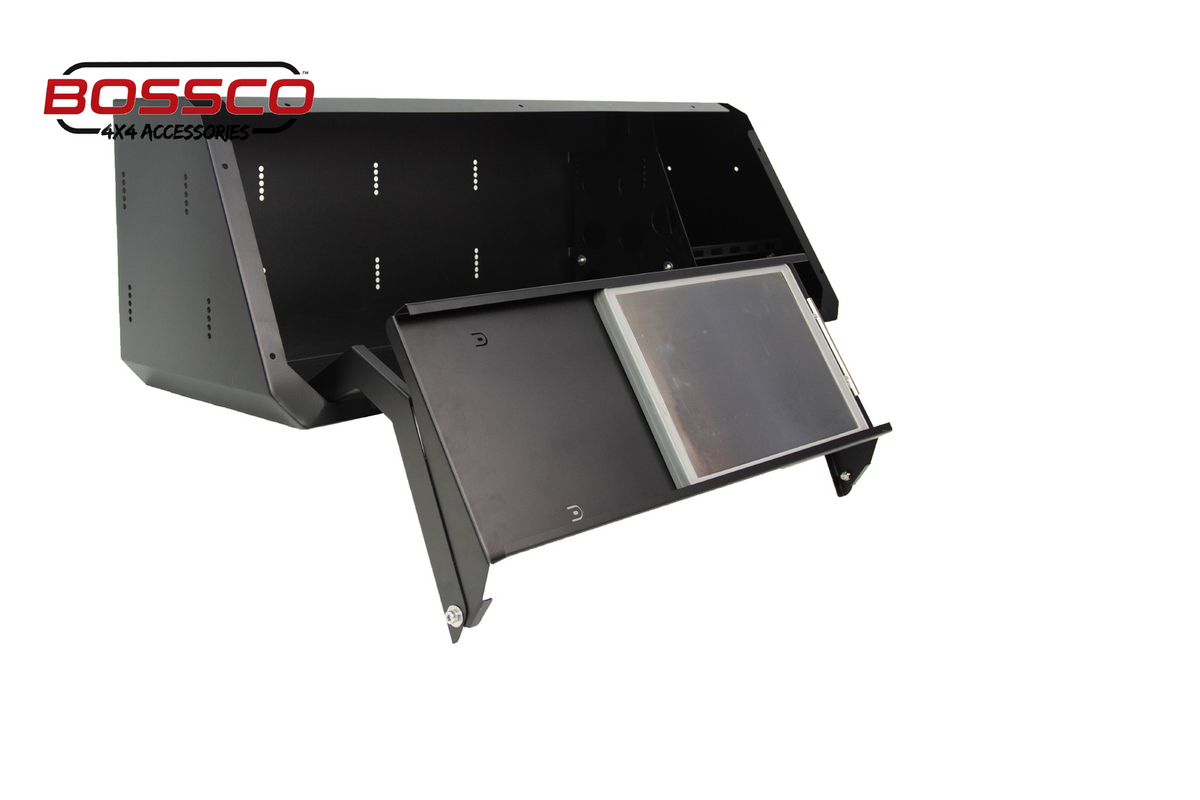

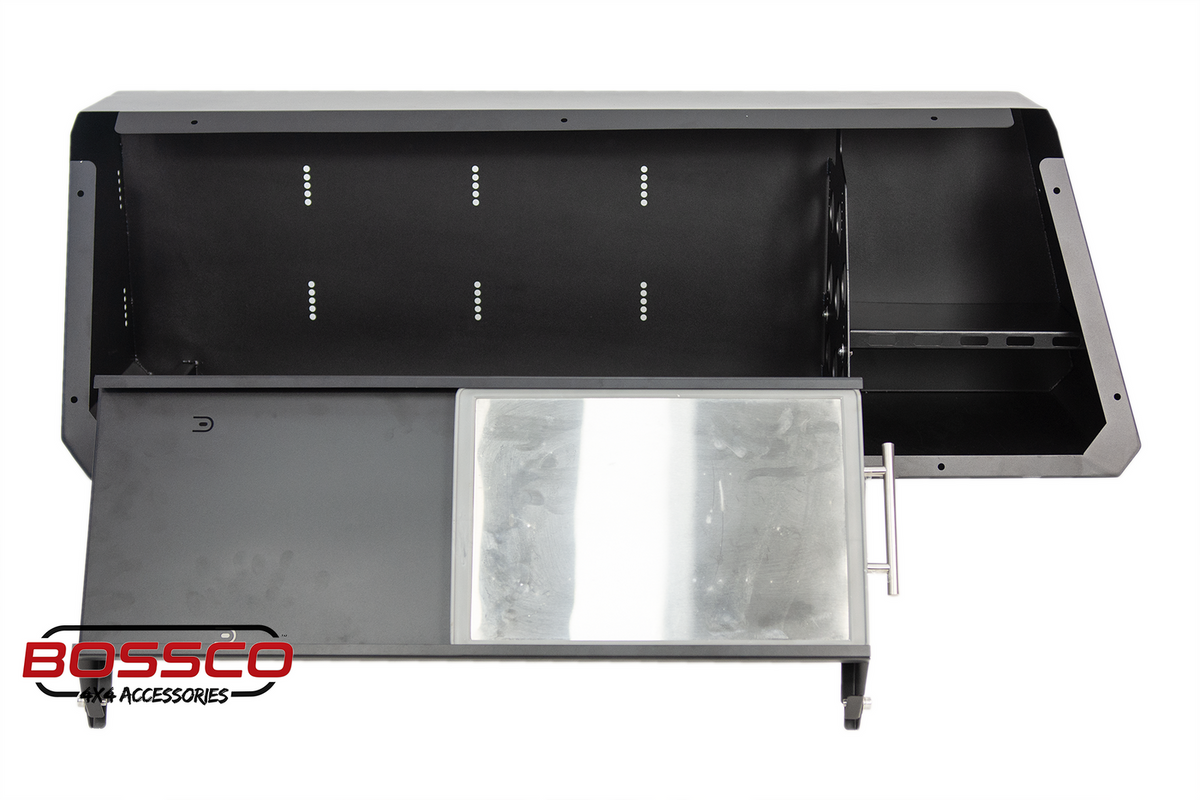

  • 395x270mm double sided chopping board. Stainless steel on one side and food-grade HDPE (High Density Polyethylene) on the other

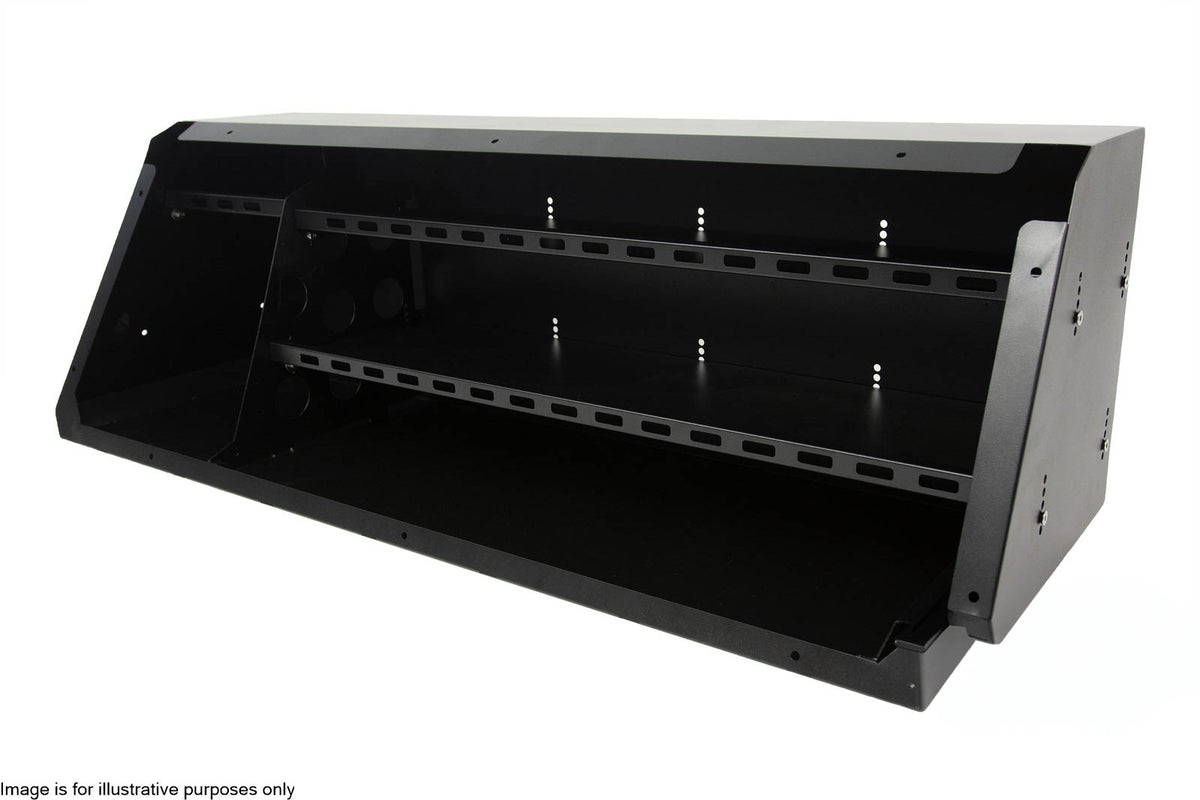

  • Extra storage. 1 lower storage shelf to make use of vertical space. Another higher storage shelf is provided but can only be used on Driver side storage compartments.

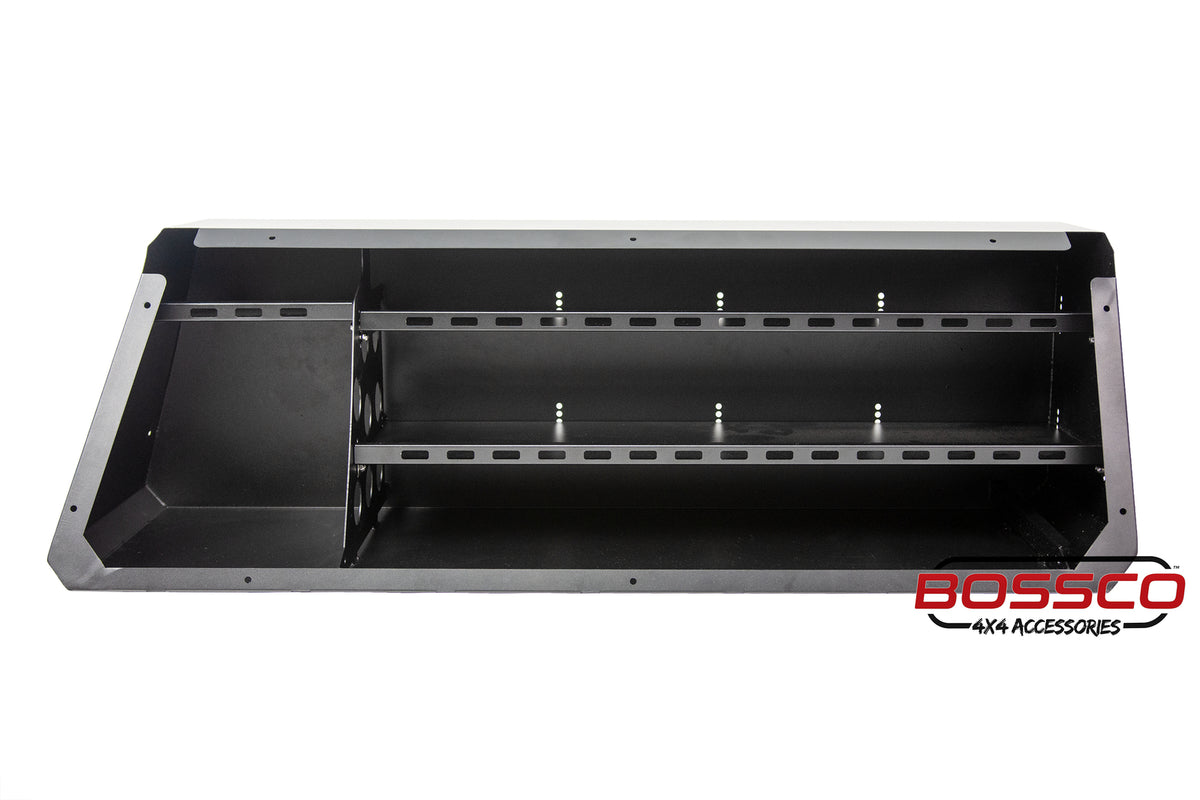

Passenger Side Kitchen Unit Driver Side Storage Unit
Specifications
  • Drilling into the canopy is required. Use the storage box to mark out 10 M6 holes surrounding the canopy door frame. Silicon sealant is recommended to ensure no water leakage into the canopy.

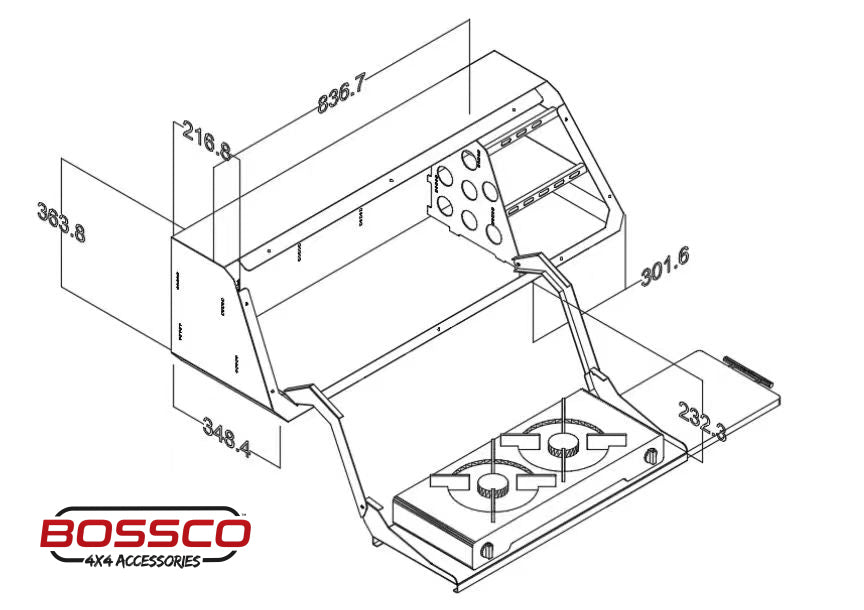

  • Able to permanently mount cooker. Rivets provided so a standard size butane cooker can be permanently mounted to the table
  • Steel construction. This is to ensure the max rigidity and strength of the storage boxes as they rely on the folded outer edge of the box to carry the weight of the box
  • Built for electricals too. Centre vertical support is welded to canopy box to greatly increase box strength and rigidity. Circular cutouts have been placed throughout for cable management
  • Can carry up to 30kg cargo
  • Box weighs 20kg assembled
  • Please note regarding this first iteration of the product
    • The brackets of the table will rub on the internal vertical support, especially on the dome head bolt if the shelf is fitted but the table will fully open and close. Later iterations may see a smaller table and larger bushes to avoid this
    • The front door latch of the canopy may catch on the table brackets if the canopy is not positioned exactly as intended in our drawings. In this scenario, simply shorten the latch bolt so that it will clear the table brackets.
  • Drilling into the canopy is required. Use the storage box to mark out 10 M6 holes surrounding the canopy door frame. Silicon sealant is recommended to ensure no water leakage into the canopy.

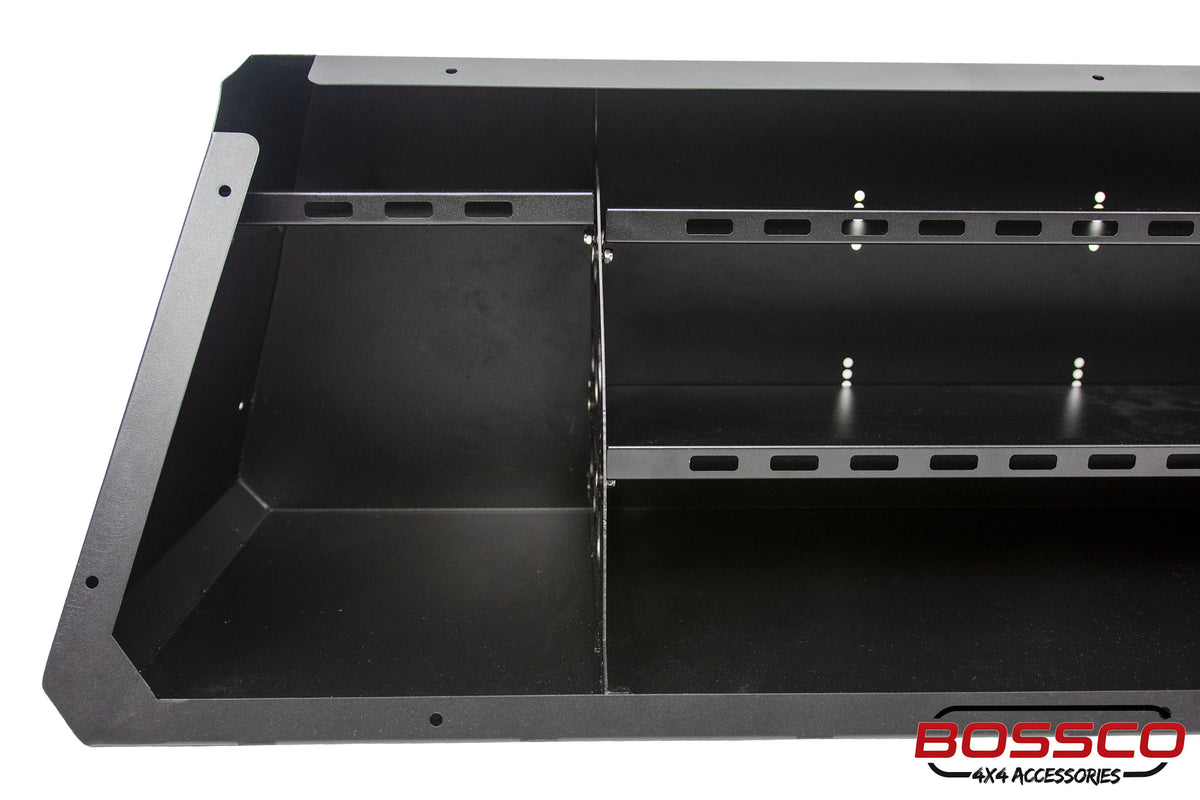

  • Main shelves have 5 pre-drilled mounting positions so you can adjust the height of the shelves to suit your needs
  • Smaller side shelf only has 1 pre-drilled hole. May be adjusted slightly but will be limited by the taper of the box. New holes will also have to be drilled if required
  • If you'd like the smaller shelf to be level with the larger shelves, M6x20 (longer bolts) will have to be sourced to secure both shelves together.
  • Steel construction. This is to ensure the max rigidity and strength of the storage boxes as they rely on the folded outer edge of the box to carry the weight of the box
  • Built for electricals too. Centre vertical support is welded to canopy box to greatly increase box strength and rigidity. Circular cutouts have been placed throughout for cable management
  • Can carry up to 30kg cargo
  • Box weighs 18kg assembled
Package Contents

1x Passenger side gull wing storage compartment

1x Fold down bench with slide out chopping board/mouse pad (double sided)

1x Small side shelf (lower)

1x Bag of bolts and fittings

1x Driver side gull wing storage compartment

2x Large storage shelf (top and bottom)

1x Small side shelf (upper)

1x Bag of bolts and fittings

Compatibility Information

All BCX Canopies GWM CannonNissan Navara NP300 Toyota Hilux N70 N80 2005+

Warranty Information

All our products come with a warranty against manufacturing defects. If you need to claim on your warranty then the best place to start is at our support hub. There you can find FAQs, check out our file repository, report a problem with your order or contact us if you need support.

FITMENT INFORMATION

Unfortunately there are no product files for this product. We always recommend professional installation. We offer installation support tailored to professional installers. If you are unsure, we recommend professional installation at our premises, by one of our recommended installers, or your preferred mechanic.
