Waterproofing
First came a downpour: “not a single drop of water” got inside. The verdict in the next build update: “it has officially been certified leak-free.”
BOSSCO / ALLOY TUB CANOPIESBUILT FOR THE EVERYDAY. READY FOR THE GETAWAY.
Work hard.Get out.Go again.
From the first job to the last light. Give your ute a canopy that works as hard as you do.
YOUR NEXT CHAPTERA BOSSCO ORIGINAL
BCX-R Black Aluminium Tub Canopy for Isuzu D-Max Dmax 2012-2020
3 Year Warranty
Vehicle compatibility
$3,499.00
Tax included. Shipping calculated at checkout.
Build your setupAvailable to order
Calculate shipping
Featured in the
4X4 Australia HiLux build.
KEEP EXPLORING
BCX-R Black Aluminium Tub Canopy for Isuzu D-Max Dmax 2012-2020
3-YEAR CANOPY WARRANTY
Covered for 3 years.
Every Bossco tub canopy purchased after 25th September comes with a 3-year warranty.
3years
CANOPY WARRANTYApproximately 70 kg. CANOPY ONLY
Approximate range average. Weight varies by vehicle and configuration. Excludes the Essentials package.
Triton canopy shown
02 / THE FIELD NOTESFITTED. USED. REVIEWED.
AS FEATURED IN
The Official verdict.
“a no-brainer”Dex Fulton · 4X4 Australia
That’s how 4X4 Australia described choosing Bossco for its N80 HiLux build.
Read the HiLux build (opens in a new tab)
Looks
The boxy profile suited the HiLux’s lines and the black finish matched its wheels. Their take: “the canopy looks tops”.
Durability
Out on the tracks, it rubbed against multiple trees without damage. The reviewer also highlighted the heavy-duty doors and internal bracing.
From 4X4 Australia’s N80 HiLux canopy review. Read the full review (opens in a new tab).
THE CANOPY / IN FULL
The full picture.
“Once installed, it really is a great option for any ute owner.”
Dex Fulton · 4X4 Australia From the N80 HiLux canopy build review.

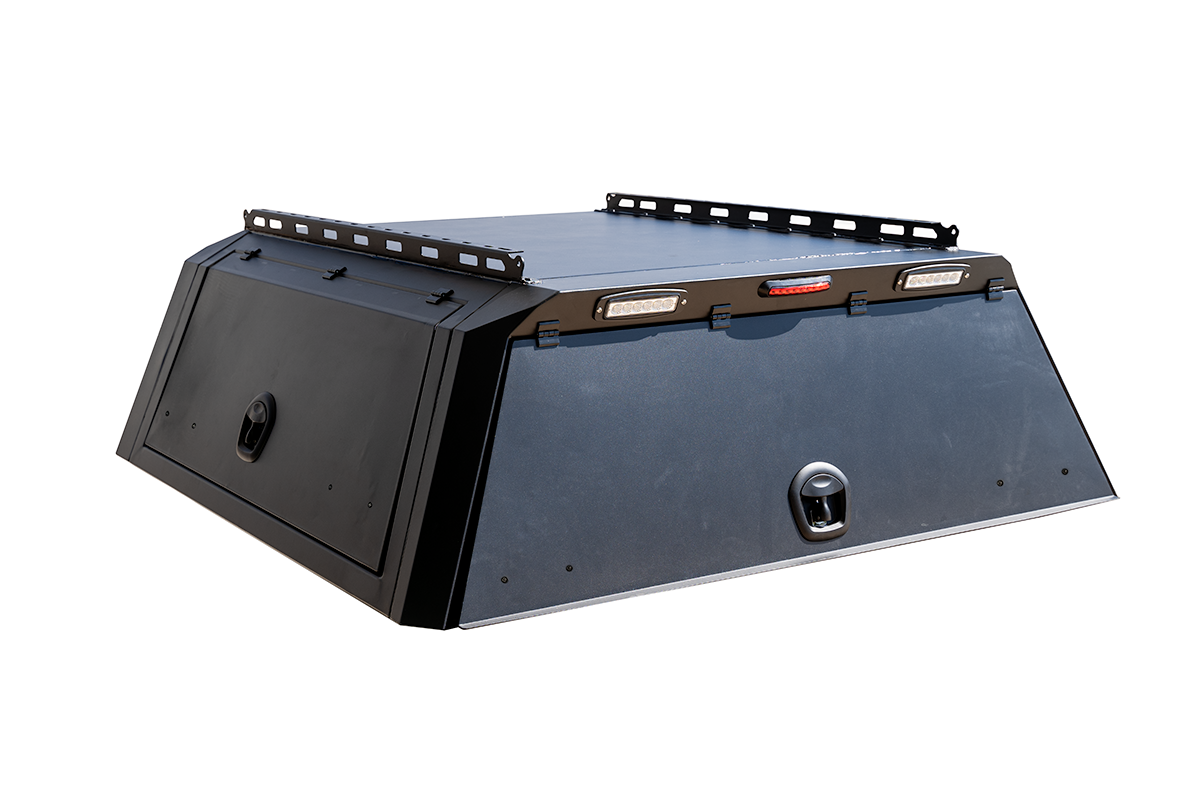

BCX-R Black Aluminium Tub Canopy for Isuzu D-Max Dmax 2012-2020
- 5pc Rugged Aluminium Modular Canopy.
This greatly reduces our supply chain and distribution costs and we pass the savings directly to you.
- Quality water-resistant seals.
Pre-installed rubber seals line the edges of the 3 gull wing doors. EVA foam tape and RTV gaskets are also provided to further enhance weatherproofing.
- 300kg static load capacity on the roof of the canopy.
Dynamic load capacity is 100kg. Subject to tub load limit.
- Positive Pressure Air Vent
- Premium Whale Tail Compression Locks:
central locking upgrade kit available.
- Down Light Mounts
- Third brake light provided with canopy for your safety.
White interior LED light also provided. Auto electrician required for wiring.
- Textured black powder coat
- Supplied with no-drill clamp on mounting brackets
as well as optional L-brackets that must be drilled & bolted to the tub where applicable. This is recommended for heavy duty use.
- Full fitting kit provided
Considered in every detail
Built with purpose. Down to the details.
01 /FEATURE 01
RUGGED CONSTRUCTION
Constructed from aluminium alloy to keep weight down - 3mm thick 6061 aluminium internal ribs form a heavy duty frame for the next generation of offroad 4x4 canopies. Thanks to 5x20mm internal welded cross ribs, 2x bolted joining ribs & 2x23mm welded & bolted side ribs we can provide an amazing 300kg static load capacity on the roof of the canopy. Please also check how much weight your tub can load. Dynamic load capacity is 100kg
02 /FEATURE 02

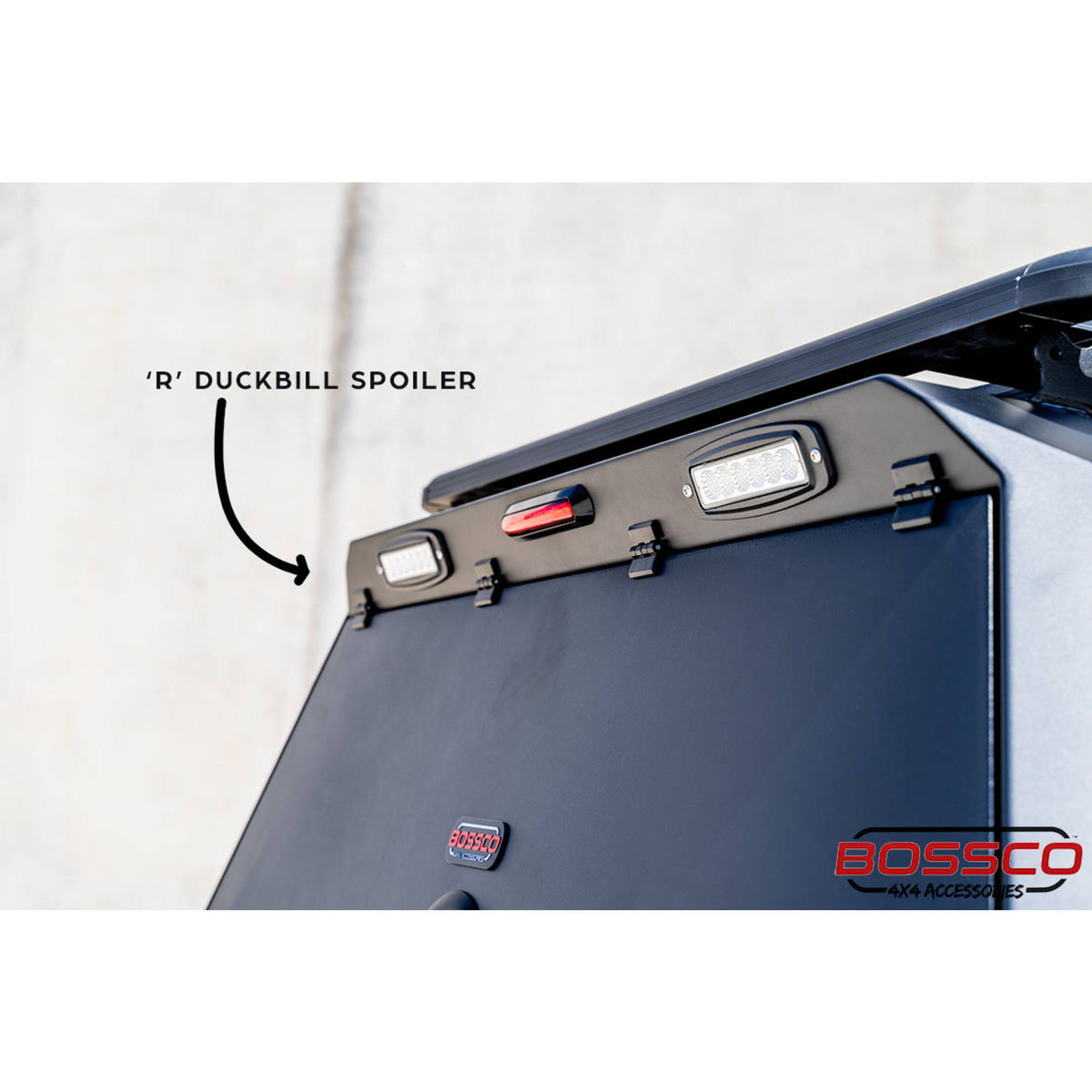

LED LIGHTING INCLUDED
It's not just lightweight, it comes with lights! In addition to the third brake light we've built two LED Worklights into the R Duckbill Spoiler. A matching LED Worklight is strategically placed inside the canopy to light up the inside of the canopy without blinding you. All that's left is wiring them up...
03 /FEATURE 03

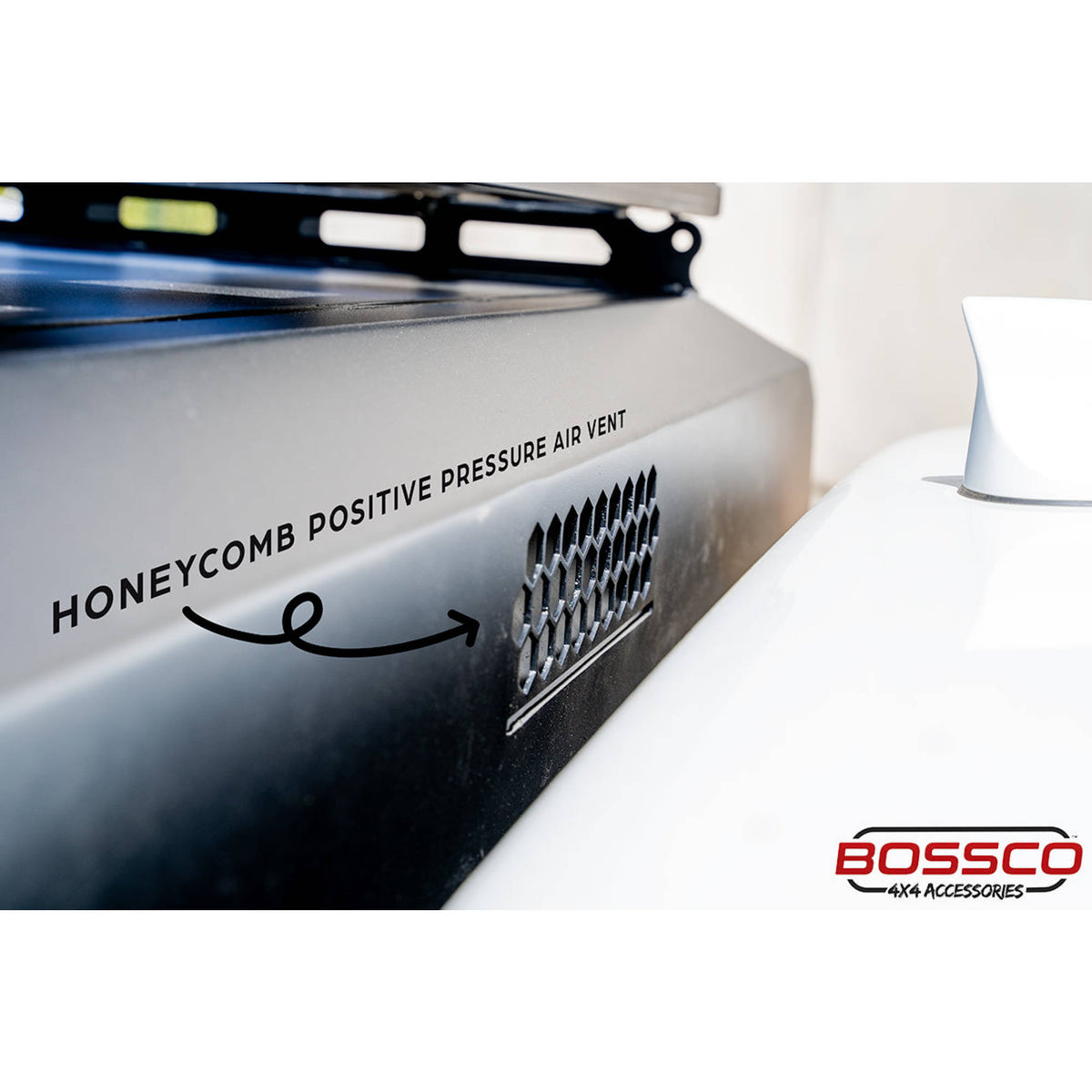

Positive Pressure Vent
Say goodbye to road dust invading your canopy! This specially designed air vent creates a positive pressure environment inside, keeping road dust out rather than sucking it in. It's also engineered to prevent water ingress and is discreetly positioned to maintain security. Plus, it ensures a well-ventilated interior on scorching summer days. (Not available on Cannon Alpha due to cab shape)
04 /FEATURE 04
Premium Whale Tail Locks
Industry professionals know that these are the crème de la crème of compression locks... or any locks. Our Whale Tail Locks are user-friendly, allowing you to operate them with one hand while juggling tools, shopping, or even children. We even make a central locking upgrade kit for extra ease of use.
05 /FEATURE 05
Quality water-resistant seals
Pre-installed rubber seals line the edges of the 3 gull wing doors. EVA foam tape and RTV gaskets are also provided to further enhance weatherproofing. Some assembly is required to install this product but if installed correctly, your tub will be kept nice & dry in almost all conditions (please note that most tailgates are not watertight).
From the 4X4 Australia HiLux build
“not a single drop of water”
After heavy rain following installation, the reviewer reported a dry interior and credited careful sealing.
06 /FEATURE 06
Accessorise It
A canopy is only the foundation of your dream build. That's why we continue to develop a growing range of canopy accessories to suit different lifestyles and needs. Whether it's a roof top tent for the 4WD Tourers or a set of drawers for the Tradie's Workhorse, Bossco has got you covered.
Accessories sold separately. Check the selected product for compatible options.
MAKE ROOM FOR MORE
Build it your way.
Take your setup further with roof storage, a canopy kitchen or your next 12V project.
Explore all accessories-
Roof & touring
BCX-R Canopy Roof Racks
Roof bars and platform options for the gear that goes up top.
From$230.00 AUD -
Storage
BCX-R Canopy Modular Storage Units
Organise your gear with storage and kitchen unit options.
$899.00 AUD -
Power & access
Electrical Control Box for BCX-R Canopies
A control box for your 12V setup.
$249.00 AUD -
Power & access
Central Locking Upgrade Kit For BCX-R Aluminium Canopies
Central locking convenience. Check kit compatibility and installation details.
From$399.00 AUD -
Roof & touring
Bossco Basecamp 4WD Roof Top Tent
A rooftop basecamp for your next trip. Check rack and vehicle load limits.
$2,299.00 AUD
YOUR CANOPY / YOUR SETUP
The next step? Make it yours.
- 6061 aluminium internal ribs
- 3mm
- Canopy roof / static load
- 300kg
- Canopy roof / dynamic load
- 100kg
Canopy roof ratings. Always check the selected canopy specifications and your vehicle and tub load limits; the lowest applicable limit governs.
Make every dollar work
Value in the details.
5pc Rugged Aluminium Modular Canopy. This greatly reduces our supply chain and distribution costs and we pass the savings directly to you.
LED LIGHTING INCLUDED
In addition to the third brake light we've built two LED Worklights into the R Duckbill Spoiler. All that's left is wiring them up...
RUGGED CONSTRUCTION
Constructed from aluminium alloy to keep weight down - 3mm thick 6061 aluminium internal ribs form a heavy duty frame for the next generation of offroad 4x4 canopies.
Accessorise It
A canopy is only the foundation of your dream build. That's why we continue to develop a growing range of canopy accessories to suit different lifestyles and needs.
Assembly and wiring are required. When comparing options, include delivery, installation and any optional accessories in the total. Check the selected product’s inclusions and vehicle compatibility.
The finer details
Considered. Inside and out.
Get to know the construction, the fitment and the options that make the setup yours.
Installation and fitting
Some assembly is required to install this product.
We always recommend professional installation. We offer installation support tailored to professional installers.
Check the selected product description for supplied fittings and mounting requirements.
Included With Every Canopy
Warranty Information
All our products come with a warranty against manufacturing defects. If you need to claim on your warranty then the best place to start is at our support hub. There you can find FAQs, check out our file repository, report a problem with your order or contact us if you need support.
FITMENT INFORMATION
For vehicle-specific fitting information, speak with our team or a recommended installer. We recommend professional installation. We offer installation support tailored to professional installers. If you are unsure, we recommend professional installation at our premises, by one of our recommended installers, or your preferred mechanic.
Shipping Information
Our shipping calculator provides an estimate of the most cost effective carrier quote currently available from our warehouse to the postcode entered. The full shipping price may change at checkout depending on your address. We do not ship internationally and we do not send items to PO Boxes or Freight Forwarders.
