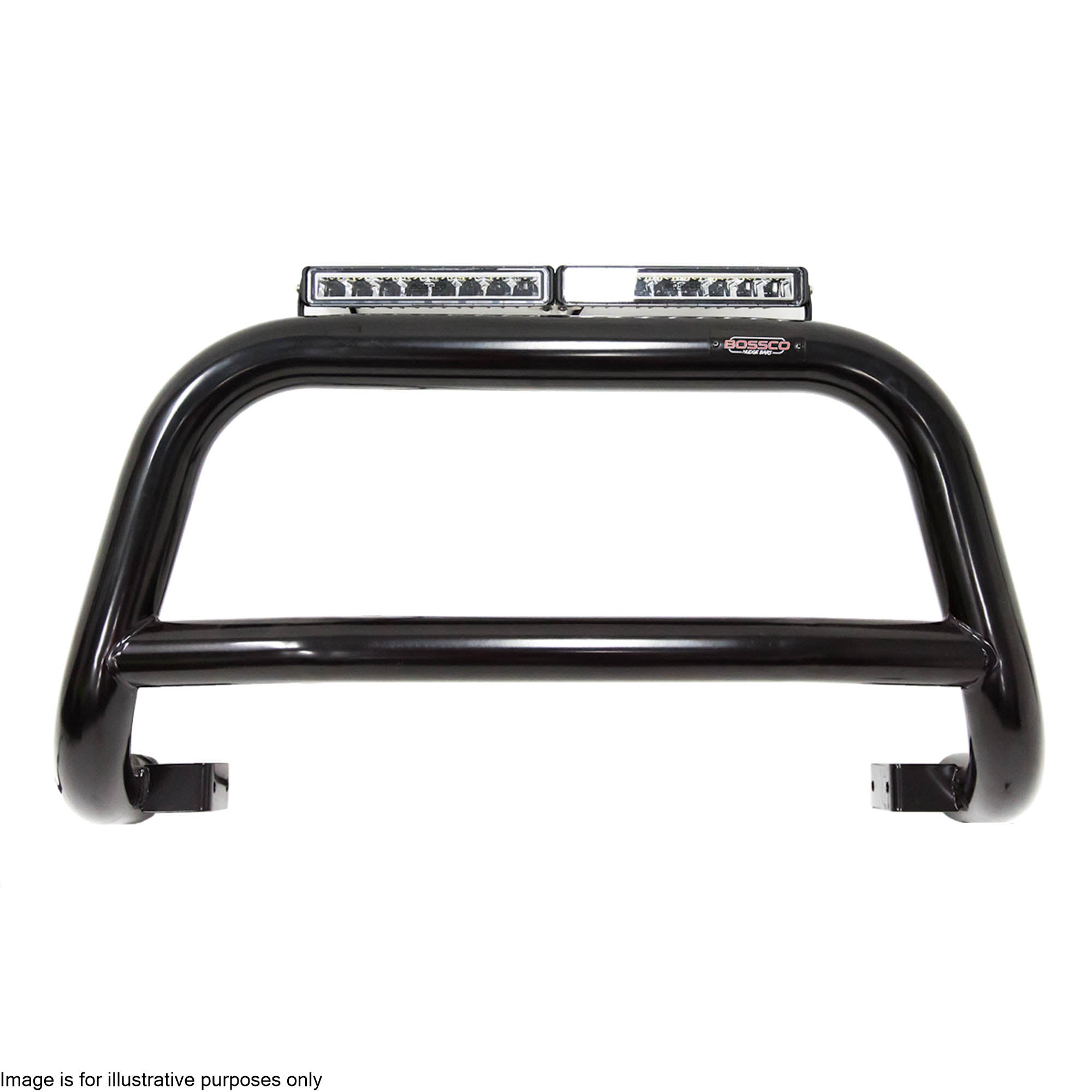

BLACK Nudge Bar Suitable for Toyota Fortuner 2015-2024 w/ 20" Modular Single Row LED Light Bar
Shipping Estimator
Loading ...
PRODUCT NOTE
Description
Nudge Bar
- No drilling
- 3" bar; 2.5" cross bar
- Powder Coated Black Steel
- 3'' bar (middle cross bar is 2.5")
- (2) driving light mounts
- Distance between light mounting tab holes (center to center) : 435mm
- 1.5kg max loading on each light mounting tab
- NOT compatible with aftermarket recovery points
- Aftermarket product
20" (2x10") MODULAR Slim Line LED Light Bar
The brand new Bossco 10" modular light bar has been designed to to suit every situation using a revolutionary design not seen anywhere else on the market. Our light bar has unique mounting points and brackets to allow you to make any length light bar you'd need. Whether you want to mount a single 10" bar on your nudge bar or create a 40" beast to go across your roof tray, we've got you sorted. Each package deal comes with a FREE harness and splitters to suit the amount of lights you purchase and mounting brackets to cover a whole range of lengths.
- 2 light bars
- Wiring harness included
- 10" (260mm) each bar
- 45W each
- 1 Lux at 302m
- Modular design allows multiple lights to be combined and mounted together (straight or curved!)
- Comes with multi-position side and bottom mount brackets fully mountable over 360mm
- IP68
- Tough cast alloy housing
- Polycarbonate lens
- Waterproof deutsch plug
Dimensions (with brackets): | 385mm |
Dimensions: | 260mm |
Voltage: | 10-30V DC |
IP Rating: | IP68 |
Operating Lumens Output: | 4200 lm |
Distance to 1 lux: | 302m |
Housing: | Aluminium |
Lens Material: | Polycarbonate (PC) |
Weight (each): | 0.86kg |
No. of light bars | Distance to 1 lux | Lumens |
1 | 302m | 4200 |
2 | 427m | 8400 |
3 | 523m | 12600 |
4 | 604m | 16800 |
Compatibility Info
BOSSCO NUDGE BARS
Nudge bars are essential accessories to offer both style and functionality to your vehicle's front-end. We designed them to be solidly built, well priced and easy to install. It provides protection against minor collisions and bumps encountered during off-road adventures or daily driving.
Light Tabs or No Light Tabs
Equipped with two built-in mounts for driving lights, spaced 435mm apart, our nudge bar allows for easy installation of auxilary lights to enhance disbility. Each light mounting tab can support up to 1.5kg, providing secure attachment for your auxilary lights.
The right material for Your needs
With variants in either lightweight powder coated alloy, black powdercoated steel or stainless steel; our Nudge Bars are manufactured to shrug off scrapes, stone chips and surface rust while remaining reliable and strong.
Skid Plate or Crossbar
The integrated skid plate not only enhances the nudge bar's protectiveness capabilities but also adds a touch of style to your vehicles front end. Designed to protect your vehicle's bumper from stone chips and minor impacts. Alternatively, the nudge bar with the 3 inch cross bar offers both style and functionality without the additional skid plate.
Front Sensor and Radar Compatible
One of the standout features of some Bossco nudge bars is their exceptional sensor compatibility to suit most vehicles. These nudge bars are meticulously engineered to seamlessly integrate with your vehicle’s existing sensor systems, including front-facing radar and tech packs. If your nudge bar looks like one of the below pictures then you can rest assured that it will not interfere with the functionality of your vehicle's sensors. This means that all advanced driver-assistance systems, such as adaptive cruise control, automatic emergency braking, and parking assistance, will continue to operate.
Warranty Information
All our products come with a warranty against manufacturing defects. If you need to claim on your warranty then the best place to start is at our support hub. There you can find FAQs, check out our file repository, report a problem with your order or contact us if you need support.
FITMENT INFORMATION
Unfortunately there are no product files for this product. We always recommend professional installation. We offer installation support tailored to professional installers. If you are unsure, we recommend professional installation at our premises, by one of our recommended installers, or your preferred mechanic.
